Specifications:
- Model: ARC-2835-240W
- LED Type: SMD2835
- LED QTY: 240LED/M
- Input Voltage: DC24V
- Power: 19.2W/M
- Light Efficiency: 100lm/W
- Luminous Flux: 1920lm
- CRI: ≥ 80/90/95
- Color: 3000K/4000K/6000K
- PCB Width: 10mm
- Grade: IP20/IP54/IP65/IP68
- Dimensions: 5000*10mm
Note: PCB width, CRl, power and lumen can be customized

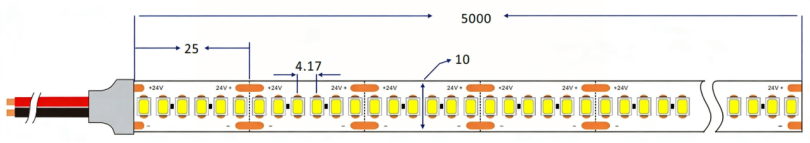

Dimension:
Accessories:

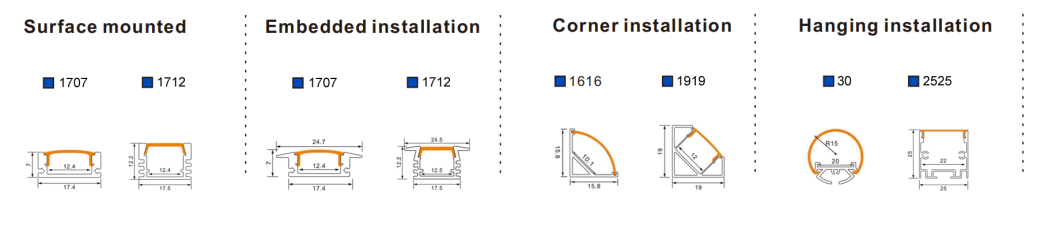

Aluminum Profiles
Power Supplies
Certificates
Other Models
| Part NO. | LED QTY | Power | Lumen(@4000K Ra90 IP20) | Voltage | CRI | IP Rating | PCB Width |
| ARC-2835-60W | 60LED/M | 6W/M | 600lm/M | DC12V/DC24V | 80/90/95 | IP20/54/65/67 | 8/10mm |
| ARC-2835-120W | 120LED/M | 12W/M | 1200lm/M | DC12V/DC24V | 80/90/95 | IP20/54/65/67 | 6/8/10mm |
| ARC-2835-168W | 168LED/M | 15.6W/M | 1560lm/M | DC12V/DC24V | 80/90/95 | IP20/54/65/67 | 6/8/10mm |
| ARC-2835-120WW | 120LED/M | 6W/M | 600lm/M | DC12V | 80/90/95 | IP20/54/65/67 | 8mm |
| ARC-2835-240W2 | 240LED/M | 14.88W/M | 1488lm/M | DC24V | 80/90/95 | IP20/54/65/67 | 15mm |
| ARC-2835-240W | 240LED/M | 19.2W/M | 1920lm/M | DC24V | 80/90/95 | IP20/54/65/67 | 10mm |
| ARC-2835-180W | 180LED/M | 18W/M | 1800lm/M | DC24V | 80/90/95 | IP20/54/65/67 | 10mm |
Waterproof Grade
