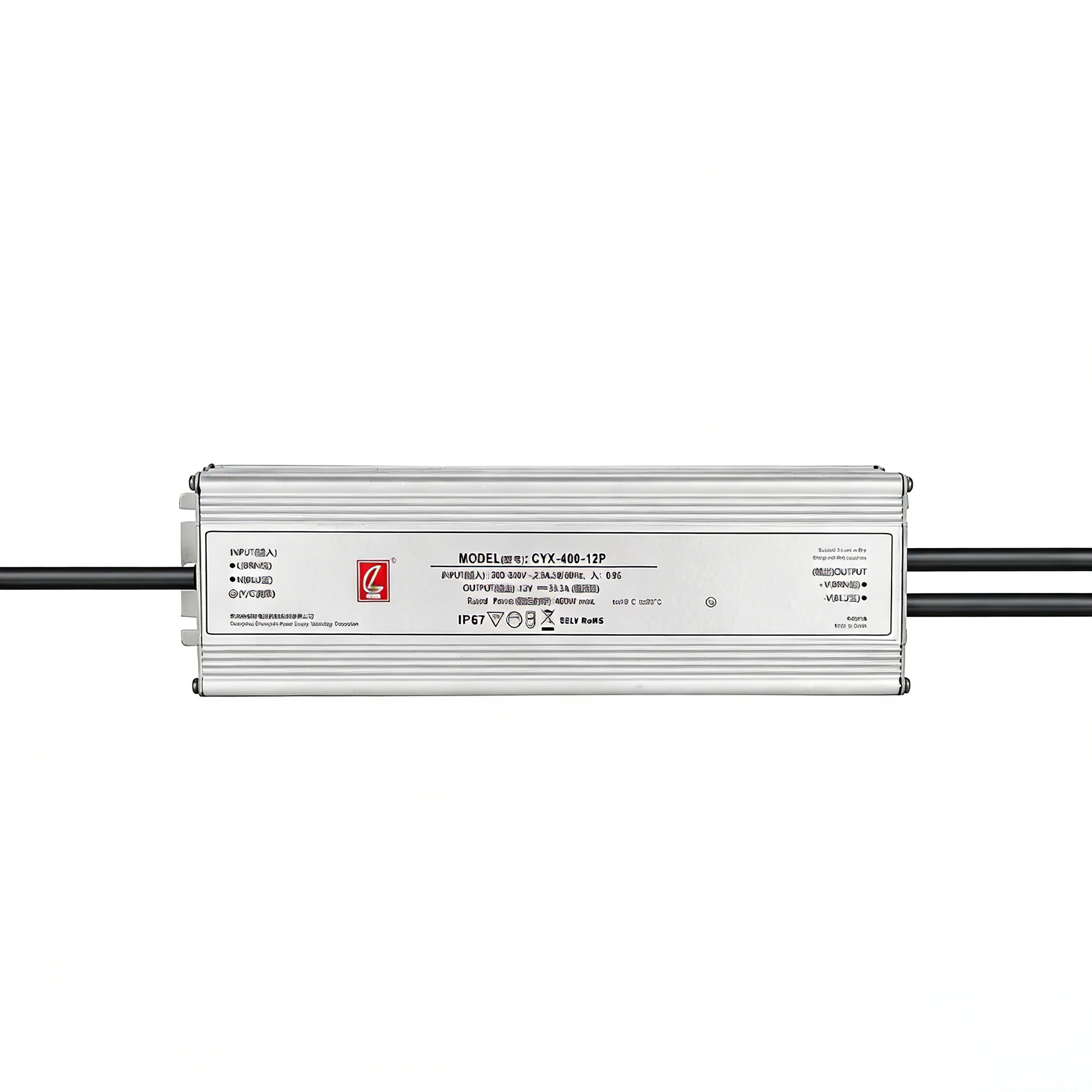

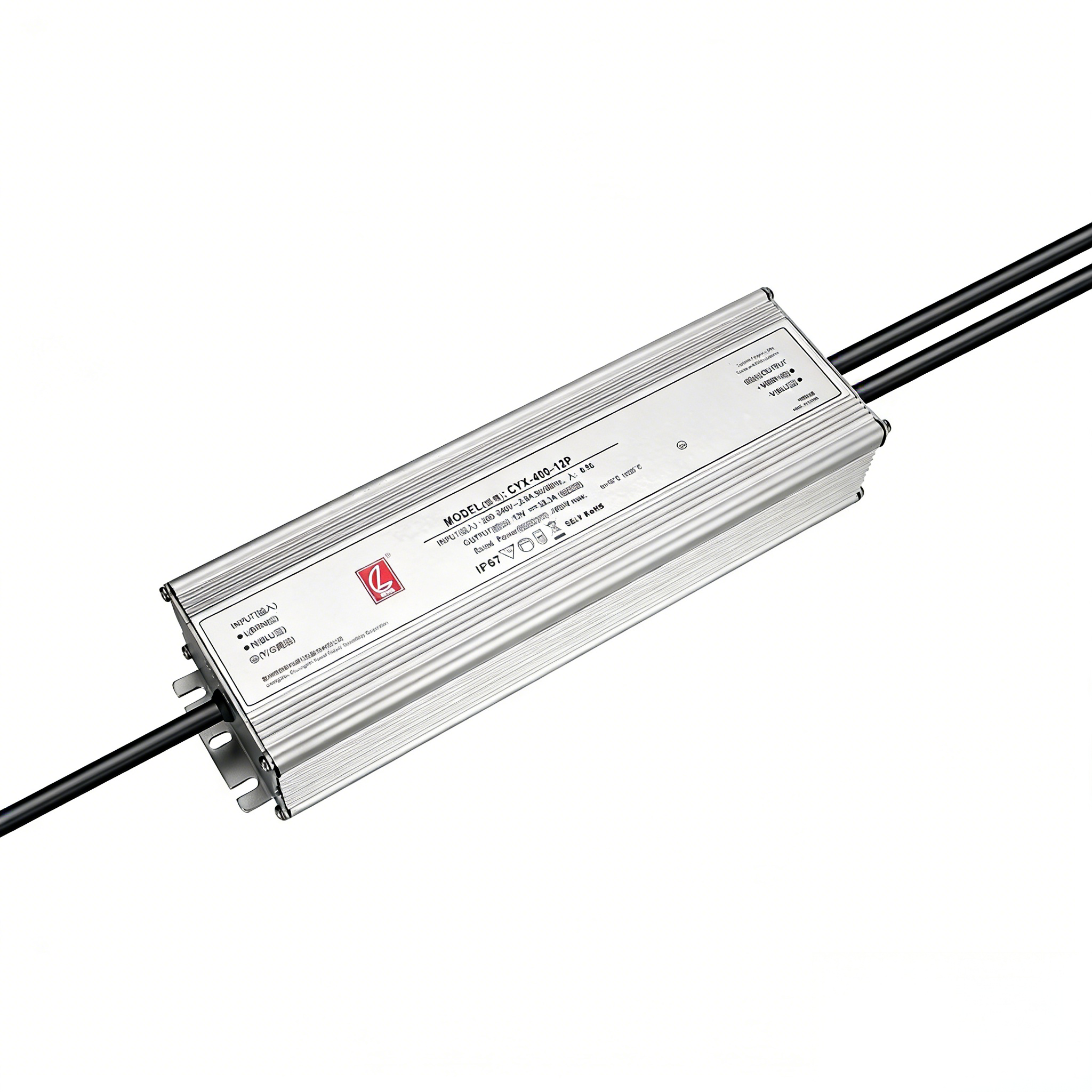

Chuagnlian CYX-400-24P 400W 24V IP67 WATERPROOF POWER SUPPLY
The CYX-400-xxP series is a 400W IP67 waterproof power supply featuring built-in active power factor correction (PFC). With an input voltage range of 176–264VAC, it offers output voltages including 12V, 24V, 36V, and 48V, making it suitable for outdoor landscaping, signage, and similar applications. Featuring an aluminium-cased waterproof design, exceptional efficiency, compact housing, and effective heat dissipation, this series ensures long-term stable operation.
Input voltage range: 176–264 VAC
High power factor up to 0.95
IP67 protection rating
Surge protection: Line‑to‑line 4 kV, line‑to‑ground 6 kV
Comprehensive protection functions: Output short circuit, over‑voltage, over‑current & over‑temperature protection
Operating temperature range: -40 °C ~ +70 °C
Five‑year warranty
Model List
| Product Model | Output Power (W) | Output Voltage (Vdc) | Adjustable Output Voltage (Vdc) | Output Current (A) | Power Factor | Total Harmonic Distortion | Efficiency @250VAC (Typical Value) |
|---|---|---|---|---|---|---|---|
| CYX-400-12P | 360 | 12 | / | 0-30 | >0.95 | <10% | ≥91.5% |
| CYX-400-15P | 400 | 15 | / | 0-26.7 | >0.95 | <10% | ≥92% |
| CYX-400-24P | 400 | 24 | / | 0-16.7 | >0.95 | <10% | ≥93% |
| CYX-400-36P | 400 | 36 | / | 0-11.1 | >0.95 | <10% | ≥93.5% |
| CYX-400-48P | 400 | 48 | / | 0-8.35 | >0.95 | <10% | ≥94% |
