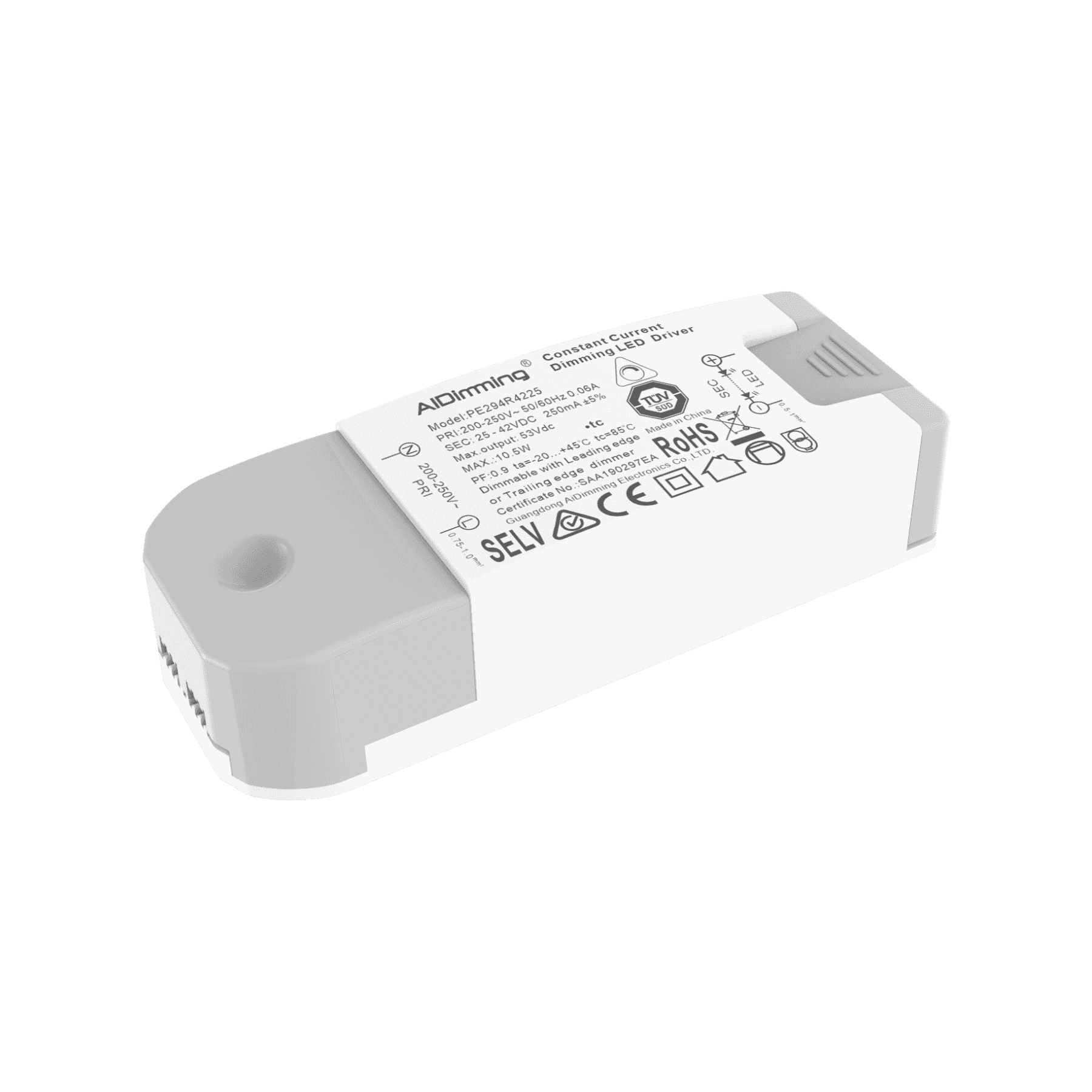

Series:triac dimming power supply
Model:PE294
Dimming range:0~100%，Leds are dimmed from 0.03%
Frequency range(Hz):50/60

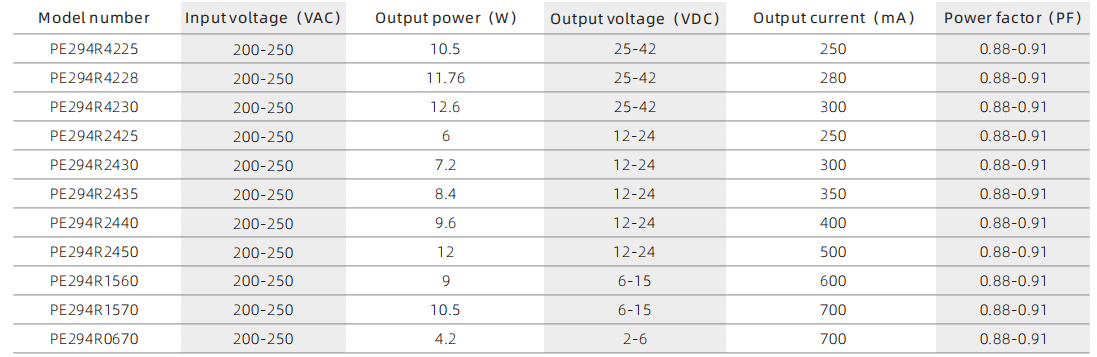

Parameters:
| Series: | Triac dimming power supply |
|---|---|
| Model: | PE294 |
| Dimming range: | 2~100% |
| Frequency range(Hz): | 50/60 |
| Current accuracy(%): | ±5 |
| PWM frequency(Hz): | >3600 |
| Power factor(PF): | 0.88-0.92 |
| Working temperature: | ta:45℃，tc:85℃ |
| Work humidity: | 20~95%RH，No condensation |
| Protection: | Overheat protection / Overload protection / Short circuit protection / No-load protection |
| Product size(mm): | 104*39*26 |
| Product weight(g): | 68g±10g |
| Product Certification: | RoHS / SELV / CE |

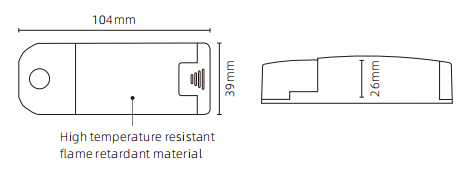

Dimension:
Model:
